Induction Nut Heating

Get a Price/Quote

Product Details:

Mounting Type Portable/Handheld
Voltage 1 x 230 VAC
Diameter 10 available sizes (19mm-44.5mm ID, per coil)
Phase Single Phase
Heating Element Induction Coils
Features LED Usage Indicator, Fan Operation, Preformed & Flexible Coils, Air Cooling, Impact Resistant Housing, Carry Case Included
Usage Induction nut heating, mechanical workshops, maintenance
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Induction Nut Heating Price And Quantity

Minimum Order Quantity 1 , , Unit

Induction Nut Heating Product Specifications

Insulation Material Outer casing body of these units is made from Impact Resistant FRP, and coated with special heat and scratch resistant PU Hard Coating.
Voltage 1 x 230 VAC
Mounting Type Portable/Handheld
Diameter 10 available sizes (19mm-44.5mm ID, per coil)
Phase Single Phase
Heating Element Induction Coils
Material Specified Other
Shape Handheld, Rectangular Carry Case
Features LED Usage Indicator, Fan Operation, Preformed & Flexible Coils, Air Cooling, Impact Resistant Housing, Carry Case Included
Usage Induction nut heating, mechanical workshops, maintenance
Application Areas Nut Heating, Bearing Removal, Inline Heating Applications
Power 1000 Watt
Frequency 50 Hz

Coil Types Preformed, Flexible, DIY
LED Indicator Yes
Tool Type Compact kit
Coil Lengths 11.4-104.1 cm
Quick Operation Instant heating
Fan Enhancement Yes
No Flame Flameless operation
Weight 2.5 kg
Optional Accessories Long coils available
Housing Military grade
Portable Design Yes
Dimensions 432 x 311 x 114 mm
Cooling Way Air cooling
Case Included Yes

Induction Nut Heating Trade Information

Supply Ability 1 , , Unit Per Day
Delivery Time 1 Months

Product Description

Our company offers top-grade Induction Nut Heating device that is highly demanding among our customers due to its high working efficiency and portable design. This industrial tool is installed with top-quality electrical components and heating elements that make it capable to achieve variable temperatures quickly within a few minutes. The outer case of this unit is fabricated by using top-grade insulators to prevent accidents due to electrical shocks. Induction Nut Heating offered by us can be delivered to our customers with a supply ability of 1 unit per day.

Product Data	Mini - Ductor 800 - PAKE
Housing	Military Grade Impact Resistant Plastic
Power	1000 Watt
Voltage	1 x 230 VAC
Working Frequency	50 Hz
LED Usage Indicator	Yes
Fan Operation Enhancement	Yes
Carry Case	Yes
Overall Dimensions (W x D x H)	432mm x 311mm x 114mm
Weight	2.5 kg
The Inductions Coils	1) MD 99-601 : 22.2mm (7/8) ID. heat resistant Pre-Formed coil (12.7cm L)
	2) MD 99-602 : Straight Heat resistant U- Form coil for DIY winding (58.4cm L)
	3) MD 99-603 : Flexible heat resistant Bearing Buddy coil for inline application (104.1cm L)
	4) MD 99-605 : 22.2mm (7/8) ID heat resistant Pre-Formed coil (25.4cm L)
	5) MD 99-607 : 44.5mm (1-3/4") Heat resistant Pre formed Coil (L- 22.2cm)
	6) MD 99-608 : 38.1mm (1-1/2") Heat resistant Pre formed Coil (L- 21.6cm)
	7) MD 99-609 : 31.8mm (1-1/4") Heat resistant Pre formed Coil (L- 21cm)
	8) MD 99-610 : 25mm (1") Heat resistant Pre formed Coil (L- 21cm)
	9) MD 99-611 : 19mm (3/4") Heat resistant Pre formed Coil (L- 11.4cm)
	10) Carry Case
Cooling Way	Air cooling
Optional Accessories
Inductions Coils	1) MD99-XBB96 : 96" Long Bearing Buddy Coil
	2) MD99-624 : 38.1mm (1-1/2") Long Pre-formed Coil (33.6cm L)
	3) MD99-625 : 44.5mm (1-3/4") Long Pre-formed Coil (33.6cm L)

Robust and Portable Military-Grade Design

Engineered for rugged environments, this induction nut heater features an impact-resistant FRP outer shell finished with PU hard coating for extra durability against heat and abrasion. At just 2.5 kg and supplied with a rectangular carry case, its lightweight, handheld form allows for effortless transport and operation in tight spaces, making it a preferred choice for both workshop and field applications.

Instant, Flameless Heating for Superior Safety

Experience powerful, instant heat delivered through induction coils without an open flame, reducing fire hazards and providing a controlled, even heating process. Enhanced with a built-in cooling fan and air-cooling technology, the device maintains optimal operating temperatures, ensuring safety and consistent performance during demanding tasks such as removing stubborn nuts or bearings.

Adaptable Operation with Versatile Coiling Options

Choose from preformed, flexible, or DIY coils with lengths ranging from 11.4 to 104.1 cm to suit a broad array of job requirements. The device's 10 available coil diameters (19mm-44.5mm ID) enable compatibility with various fastener sizes, while easy coil changes and optional extra-long coils expand its utility for specialized maintenance operations.

FAQ's of Induction Nut Heating:

Q: How does the induction nut heating process work in this tool?

A: This handheld device uses electromagnetic induction via specialized coils to generate localized heat. When the coil surrounds a metal nut, it quickly raises the temperature of the metal, allowing for rapid expansion and loosening-all without direct contact or open flame.

Q: What are the main benefits of using an air-cooled, flameless induction heater?

A: Flameless operation eliminates fire risks and provides precise, targeted heating. Air cooling, combined with fan enhancement, ensures the unit remains cool during prolonged use, reducing downtime and increasing safety for sensitive environments like mechanical workshops.

Q: When is it best to use this induction nut heater?

A: This device excels in tasks like loosening rusted, frozen, or seized nuts, facilitating bearing removal, or heating components in-line during repairs and maintenance. It's particularly valuable when open flames are impractical or unsafe.

Q: Where can the induction nut heating kit be effectively deployed?

A: Given its portable, compact design and included carry case, it's ideal for use in mechanical workshops, maintenance facilities, industrial plants, or on-site repairs. Its construction meets military-grade durability standards, making it suitable for demanding environments, including export and supply operations.

Q: What coil options are available, and how do they enhance usage?

A: The kit supports preformed, flexible, and DIY coils in 10 different diameters (19mm-44.5mm ID) with lengths ranging from 11.4 to 104.1 cm. This versatility allows users to quickly select or customize coils to accommodate a wide range of nut and bearing sizes, optimizing efficiency for varied tasks.

Q: How quick is the operation, and what features assist in usage?

A: The 1000W power output delivers instant heating. Features like the LED usage indicator, portable design, fan cooling, and impact-resistant housing all contribute to smooth, user-friendly operation. The included carry case and optional long coils make it especially convenient for professionals on the go.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'MINI DUCTOR' category

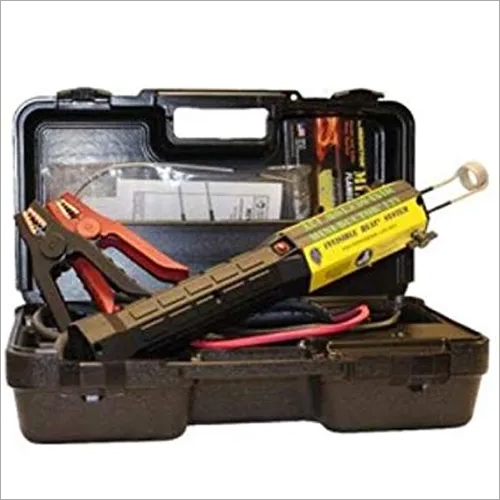

Mini Ductor Portable Induction Heater Minimum Order Quantity : 1 Application Areas : Bolt/nut/metal detachment, automotive repair Power : 840 Watt Terminal Type : Clamps/Connectors Features : LED Usage Indicator, Fan Operation Enhancement, Impact Resistance, Carry Case Included Usage : Induction heating for metal fastener removal Shape : Handheld, elongated Material Specified : Other Diameter : Varies, coil ID from 19mm to 44.5mm Mounting Type : Handheld Voltage : 12 V DC Insulation Material : Outer casing body of these units is made from Impact Resistant FRP, and coated with special heat and scratch resistant PU Hard Coating.
